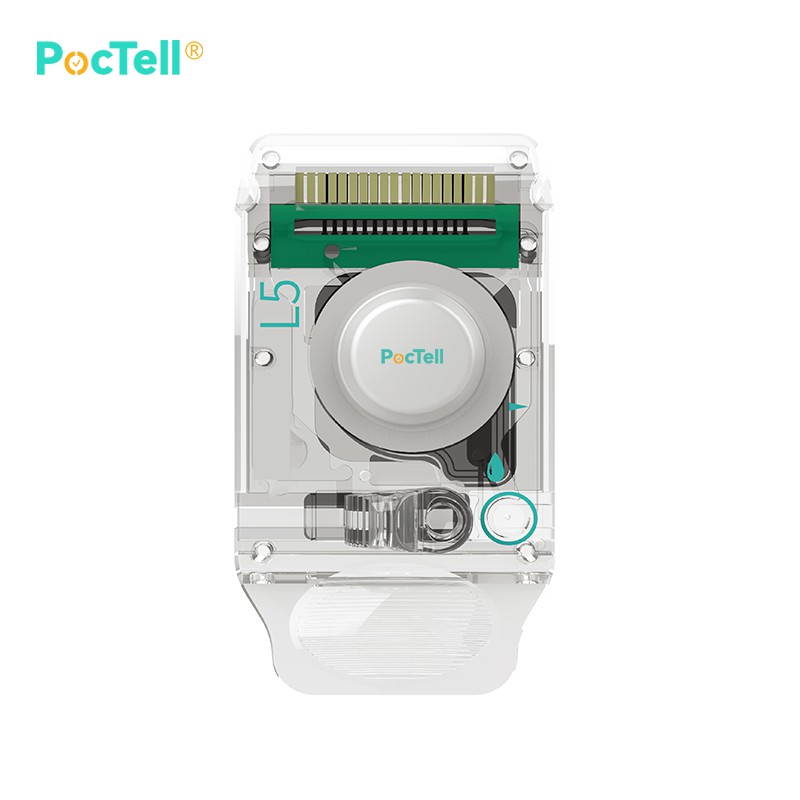

The PocTell® Portable electrolyte analyzer is used with the electrolyte test cartridges (hereinafter referred to as the "test cartridges") for the quantitative measurement of electrolyte content in the whole blood.
This analyzer is used for measuring the levels of K+ (potassium ion concentration), Na+ (sodium ion concentration), Cl- (chloride ion concentration), iCa2+ (calcium ion concentration), and iMg2+ (magnesium ion concentration).
Ordering Information
|
Model No. |
Brand |
Pkg/Size |
Size (cm) |
Weight |
Warranty |
|
P1 |
PocTell® |
1unit/Box |
37*34*38 (2units) |
<3kgs |
5 years |
The PocTell® Portable Electrolyte Analyzer is a device designed for medical personnel to quickly analyze the electrolytes in venous whole blood samples. The K+, Na+, Cl-, iCa2+, and iMg2+ in blood can be measured using the disposable test cartridge, which will help medical personnel to quickly and accurately develop the patient's treatment regimen. The analyzer can be operated by trained laboratory physicians, clinicians and nurses to analyze blood samples.
The analyzer can be used in central laboratory, outpatient/emergency laboratory and clinical departments of medical institutions and other medical service centers (such as community clinics), physical examination centers, as well as scientific research laboratories
Specifications
Environmental specifications
|
Analyzer |
Usage |
Temperature |
10°C-30°C |
|
Relative humidity |
10%-85% (without condensation) |
||
|
Atmosphere pressure |
86 kPa-106.6 kPa |
||
|
Transport and storage |
Temperature |
-20°C-55°C |
|
|
Relative humidity |
10%-93% (without condensation) |
||
|
Atmosphere pressure |
86 kPa-106.6 kPa |
Mechanics
|
Dimensions |
240 mm x 120 mm x 110 mm, permissible deviation ±10 mm |
|
Weight |
1.5±0.2 kg (including battery) |
|
Display screen |
7-inch color touch screen |
|
Power switch |
Press once to power on and long press to power off |
|
Power supply |
Lithium battery (16.8 V) or 19 VDC (alternating current input: about 100 V ± 10 V - 240 V ± 24 V, 50/60 Hz ± 1 Hz, input power: 90 VA) |
|
Data interface |
An USB interface |
|
Network® |
Ethernet |
|
code scanner |
Built-in |
|
Printer |
Built-in |
Performance
|
Time required |
The time from test cartridge insertion to the output of results is 5 ± 0.5 min |
|
Data storage |
99,999 pieces of data (including test and QC results); the earliest records will be overwritten if exceeding the limit |
|
Parameter |
Accuracy (deviation ≤) |
Precision |
Linearity |
Stability |
||
|
Range (mmol/L) |
Deviation |
Correlation coefficient r |
||||
|
K+ |
±3.0% |
≤1.5% |
1.0-15.0 |
≤3.0% |
≥0.995 |
≤2.0% |
|
Na+ |
±3.0% |
≤1.5% |
100-200 |
≤3.0% |
≤2.0% |
|
|
Cl- |
±3.0% |
≤1.5% |
65-160 |
≤3.0% |
≤2.0% |
|
|
iCa2+ |
±5.0% or±0.05 mmol/L |
≤1.5% |
0.25-4 |
≤ 5.0% or ± 0.05 mmol/L |
≤3.0% |
|
|
iMg2+ |
±5.0% or ±0.05 mmol/L |
≤3% |
0.2-1.5 |
≤ 5.0% or ± 0.05 mmol/L |
≤3.0% |
|
Printer
|
Printer |
Built-in thermal printer, using thermal printing papers |
|
Print span |
57mm |
Battery
|
Type |
Rechargeable lithium battery |
|
Working |
Continuous standby for 24 h, and continuous testing for ≥ 50 times |
|
Charging time |
No more than 8 h |
|
Limiting voltage for charging |
16.8V |
|
Charge mode |
Constant current/voltage |
|
Charging current (standard) |
1A |
|
Maximum continuous discharge current |
1000mAh |
|
Cycle life |
≥ 300 times |

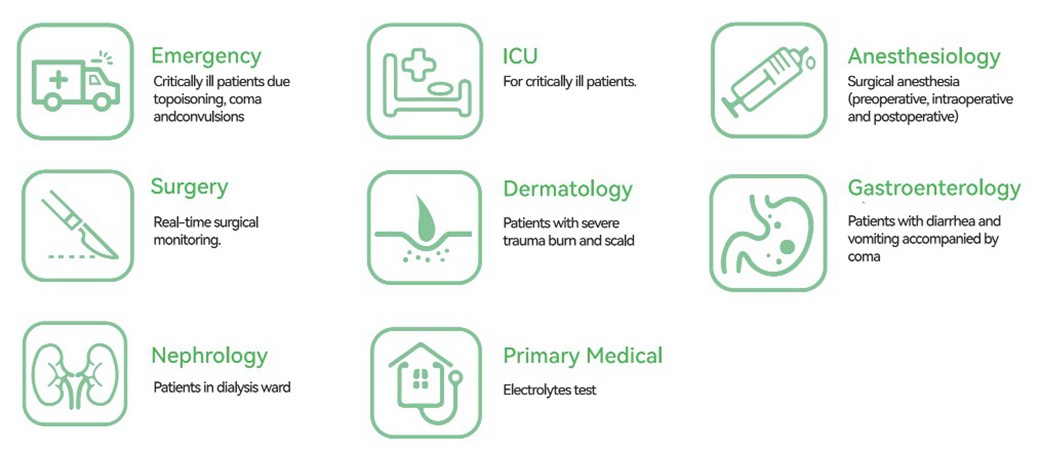

application
Packing and Transportation
All products are professionally packaged, wrapped with foam paper or foam padding for protection and safe storage. We also support both land and air freight delivery to meet diverse logistics needs.
about Us
INNOCHEK BIOTECH CO., LTD, are dedicating in delivering comprehensive, efficient, and innovative POCT solutions to global users. The company was stablished in 2017 and headquartered in Hongkong, is a conglomerate seamlessly integrating R&D, production, registration, sales, OEM and marketing. Leveraging microfluidics and electrochemical technologies, INNOCHEK has successfully developed a diverse range of key products, including blood gas and electrolytes, immunofluorescence, coagulation, and animal diagnostic series.
We have all necessary certificates like CE, ISO, FSC, etc.
