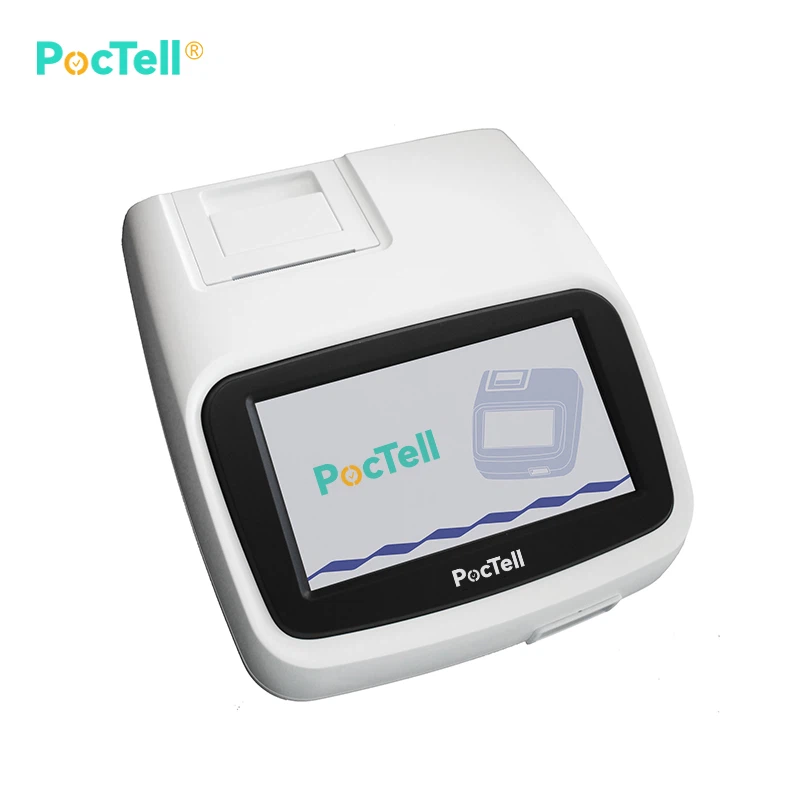

Urine Test Analyzer

PocTell® UA-201 urine test analyzer is intended for use in conjunction with the Urinalysis Reagent Strips for the semi-quantitative detection of the following analytes in human urine: Glucose, Bilirubin, Ketone (Acetoacetic acid), Specific Gravity, Blood, pH, Protein, Urobilinogen, Leukocytes and Ascorbic Acid, as well as the qualitative detection of Nitrite.

INTENTED USE

PocTell^® UA-201 urine test analyzer is intended for use in conjunction with the Urinalysis Reagent Strips for the semi-quantitative detection of the following analytes in human urine: Glucose, Bilirubin, Ketone (Acetoacetic acid), Specific Gravity, Blood, pH, Protein, Urobilinogen, Leukocytes and Ascorbic Acid, as well as the qualitative detection of Nitrite. The instrument is intended for professional, in vitro diagnostic use only. The measurement can be used in general evaluation of health, and aids in the diagnosis and monitoring of metabolic or systemic diseases that affect kidney function, endocrine disorders and diseases or disorders of the urinary tract. UA-201 urine analyzer is intended for indoor use.

Note: Button on the Touch screen are listed in bold. Display items on the screen are listed in bold italics in the manual.

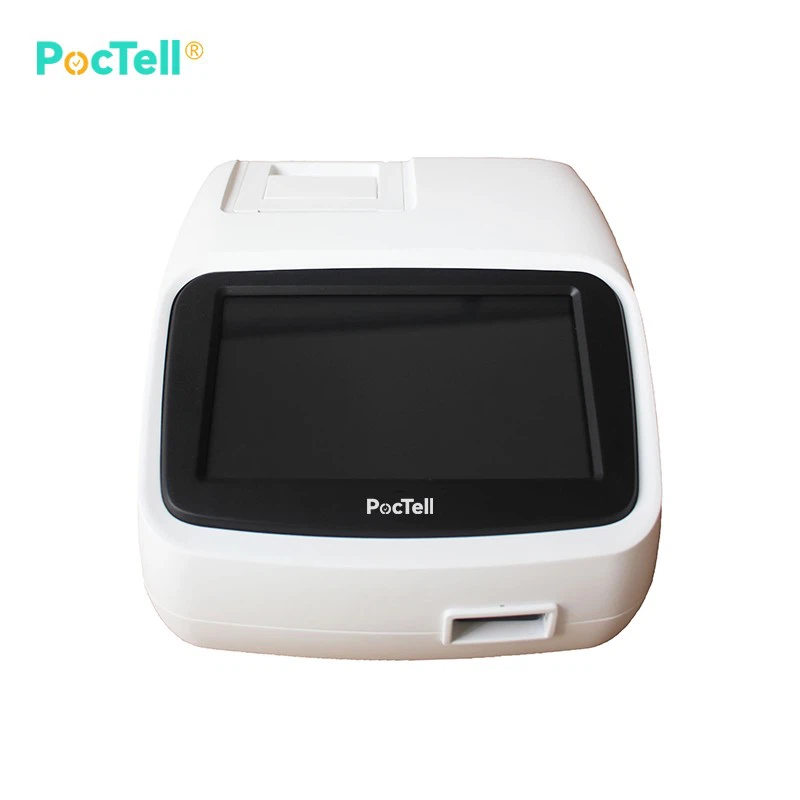

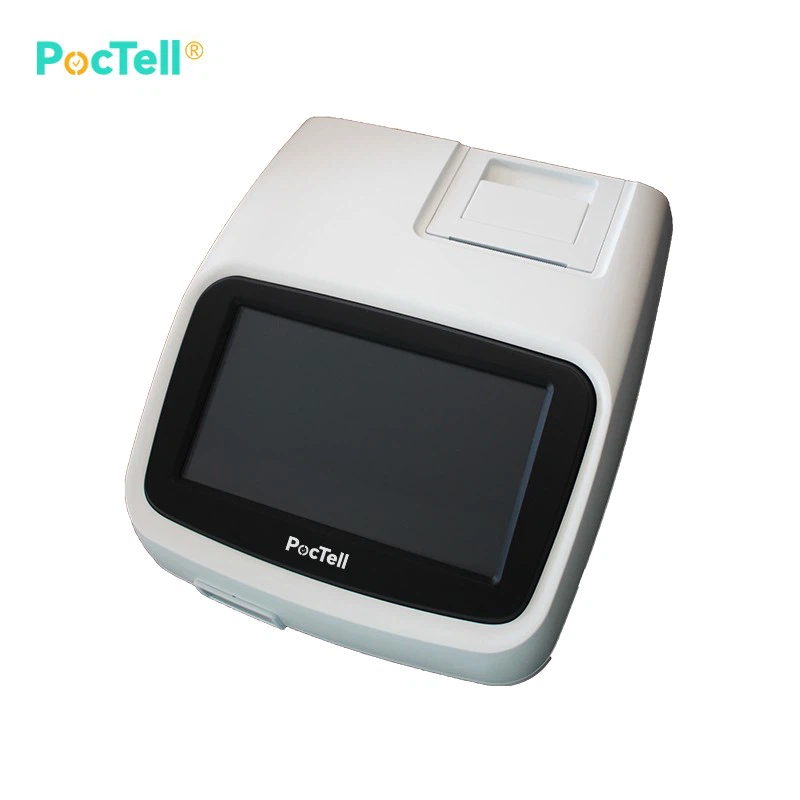

1 urine analyzer

Specification

Feature	Technical Specifications
Methodology	Reflectance Photometry
Detection	Photosensitive Diode
Detection Wavelengths	525 nm and 635 nm
Screen	Touch Screen
Display Dimensions(L × W)	15.5 cm × 8.6 cm (6.1" × 3.4")
Strip Incubation Time	1 minute
Throughput	Single Test Mode: 60 tests/hour Continuous Test Mode: 120 tests/hour
Analyzer Ports	RS232C Port for Barcode Reader or Data Transfer, USB Port for Data Transfer
Memory	2000 results
Connection Capabilities	Internal Thermal Printer (included), Optional External Printer (not included), RS232C Barcode Reader (optional), USB or RS232C Data Transfer Cable (optional)
Languages	English and other optional languages
Analyzer Operating Condition	0-40°C (32-104°F); ≤85% RH (non-condensing)
Strip Operating Conditions	15-30°C (59-86°F); ≤85% RH (non-condensing)
Power Source	100-240VAC, 50/60Hz, 60W
Weight	2.0 Kg (4.50 lbs)
Dimensions (L× W× H)	26.3 cm × 22.9 cm × 11.5 cm (10.4" × 9.0" × 4.6")
